Welded - Assembled Sloping Console (RS Series)



 RS Sloping Rack Console

Features:

  • Heavy duty - 20 degree slope, welded console rack...

  • Standard 19 panel width (22.56 overall)...

  • Sloped panel height of 17.5" (10 U)...

  • Front panel height of 26.25" (15U)...

  • Choice of two depths 24.5 or 31.5 depth...

  • Unit is shipped complete with removable side panels, 4 upper CRT mounting rails, 4 lower - infinitely adjustable combination rack mount rails (full E.I.A. spacing), one louvered flush mount rear door, solid top, 4 leveling feet and 10-32 clip nuts for rails...

  • Heavy duty: 14 gauge steel frame, 16 gauge side panels. Rails are made of 14 gauge steel (black)...

  • Finished in powder paint.

  •

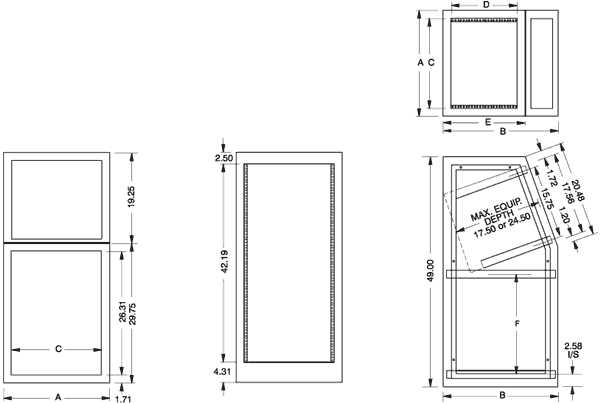

    Part Number

    1-99

    Color

     Paint Texture

    A

    B

    C

    D

    E

    F

    Wt. lbs.

    RS4924CG1



    Gray/Beige

    Textured

    22.56

    24.5

    19.06

    14

    17.5

    21.31

    200

    RS4931CG1



    Gray/Beige

    Textured

    22.56

    31.5

    19.06

    21

    24.5

    19.56

    250



    Accessories:

    Casters (Part Number 1425P)



     1425P

    • Supplied as a set of 4...

    • Manufacturers specified 400# capacity (per set)...

    • Twin nylon swivel wheels with zinc axels & hoods...

    • Wheel dia. 2.37" (final mounting height of 2.75"...

    • 5/16"-18 threaded stem mounts into existing holes in base of rack.


    Front Doors

     RS Front Doors

     Features:

  • Flush mount...

  • Solid door opens either left or right by inverting...

  • Louvered door opens right hand only with louver vents facing down...

  • Features lockable latch, magnetic catch and spring loaded hinge pins for instant installation or removal...

  • Finished in a rugged, textured gray/beige baked enamel finish.

  • SOLID DOOR
    Part Number

    1-99

    LOUVERED DOOR
    Part Number

    1-99

    Panel Space

    Ship Wt.
    (lbs.)

     RSDF19026CG1



     RSDL19026CG1



    26.25"

    10



    Desk Unit (Part Number 1564WD19001CG4)



     Features:

  • Desk sides flush with console side when mounted...

  • Constructed of particle board and high pressure, gray laminate...

  • Complete with two 14 gauge steel support channels...

  • Uses only 1.75" of panel space.

  • NOTE: Will not work with front door above - contact factory for information. 22" door required.

  •

    Notes:

    • All Dimensions in inches
