"Contempra
2" Rack Accessories - Fan Tops
Fan
Top Panel | 4" Wired Fan Top
| 10" Fan Top
|
|

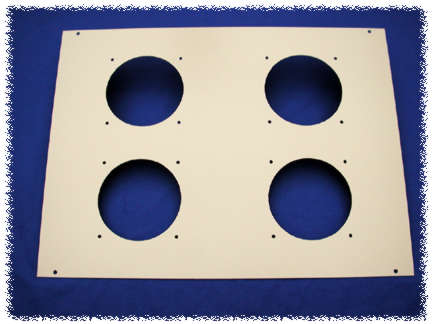

Fan
Top Panel
-
Use
only with Contempra 2 rack frames
-
14
gauge steel construction
-
4"
fan top panel - fans not included (see below)
-
4
or 6 opening depending on depth of rack
-
Maximum
flexibility - add fans, leave holes open (for cable
access) or use covers (see below)
-
Control
your rack temperature with our economical,
compact thermostat
|
|
4"
Fan Top Panels
(Pre-punched for 4" fans - accepts our fan
P/N DNMF100AC115 -
see below)
|
|
1-99 |
|
|
Use
With
Rack Frame
Depth
|
|
|
EID-C2T1923FBK1
EID-C2T1923FCG1
|
|
Black
Gray/Beige
|
|
|
|
|
EID-C2T1931FBK1
EID-C2T1931FCG1
|
|
Black
Gray/Beige
|
|
|
|
|
EID-C2T1936FBK1
EID-C2T1936FCG1
|
|
Black
Gray/Beige
|
|
|
|
NOTE:
Fans, finger guards & cords NOT
included
|
|
Fans
(Tubeaxial)
-
Standard
4.70" (100mm) fan
-
1.50"
deep
-
Choice
of either 115 or 230 VAC, 50/60 Hz.
-
Impedance
protected motor
-
Class-B
insulated
-
Ball
bearing construction, metal blades
-
Diecast
aluminum body
-
Rotation
is counter clockwise (looking at the
rotor - as pictured)
-
Airflow
is over the struts (out the back as
pictured)
-
4.70"
(100 mm) fans have male plug
terminations (requires fan cords below)
-
UL
recognized, CSA listed, CE certified
-
With
mounting hardware
|
115
VAC Fans (50/60 Hz.)
|
|
1-99 |
|
|
|
Use
With Fan Guard
Part Number
(see below)
|
Use
With Filter
Grill (see above)
Part Number
|
|
|
|
|
EID-DNMF100AC115
|
|
|
|
|
|
|
|
230
VAC Fans (50/60 Hz.)
|
|
1-99 |
|
|
|
Use
With Fan Guard
Part Number
|
Use
With Filter
Grill (see above)
Part Number
|
|
|
|
|
EID-DNMF100AC230
|
|
|
|
|
|
|
|
Metal Fan Guards
(with mounting hardware)
|
|
|
4"
Fan Hole Cover
-
Constructed
of 14 gauge steel
-
For
covering unused fan top openings on 4"
fan tops (see above)
-
Individually
packaged, hardware included
|
|
|
|
1-99 |
|
|
|
EID-DNFPBK1
EID-DNFPCG1
|
|
|
|
|
|
|
Fan
Cords
|
|
|
1-99 |
|
|
|
|
|
EID-DNMFC
|
|
Single
Fan Cord
|
|
|
|
|
EID-DNFC48P
|
|
Single
Fan Cord
|
|
|
|
|
EID-DNFC72P
|
|
Single
Fan Cord
|
|
|
|
|
EID-DNFCDC2P
|
|
Daisy
Chain
|
|
Qty
2-45 degree, 24" apart
|
|
|
EID-DNFCDC3P
|
|
Daisy
Chain
|
|
Qty
3-45 degree, 24" apart
|
|
|
-

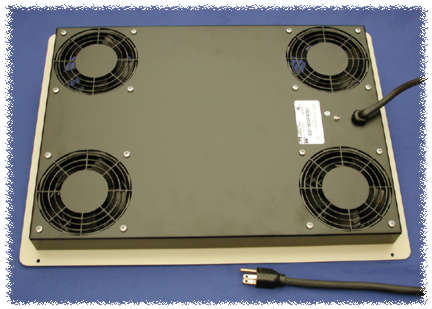

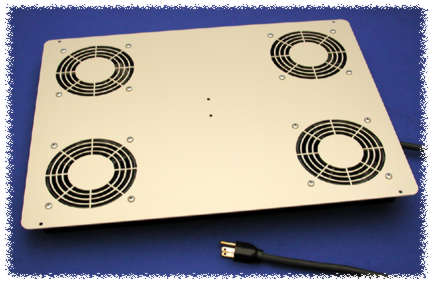

Use
only with Contempra 2 rack frames
-
Includes
a quantity of 4 - long life, ball bearing, 4", 115
volt, 50/60 Hz. AC, 100 CFM fans
-
Finger
guards are punched into top panel and bottom of fan top
-
Fans
are pre-wired, installed and complete with 3 foot cord
& plug
|
|
1-99 |
|
|
Use
With
Rack Frame
Depth
|
|
EID-C2T1923F4BK1
EID-C2T1923F4CG1
|
|
Black
Gray/Beige
|
|
|
|
EID-C2T1931F4BK1
EID-C2T1931F4CG1
|
|
Black
Gray/Beige
|
|
|
|
EID-C2T1936F4BK1
EID-C2T1936F4CG1
|
|
Black
Gray/Beige
|
|
|
Spare
Fans
(Included in
above)

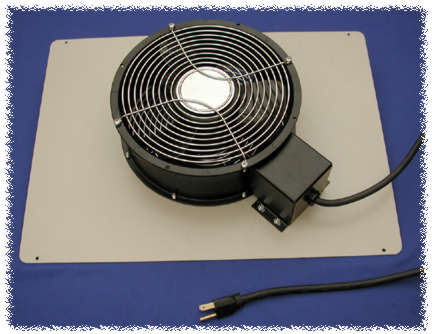

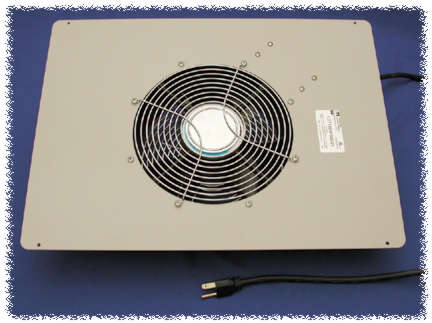

10" Fan Top
|
|
|
|
|
|
|
Bottom
View |
-
Use
only with Contempra 2 rack frames
-
Includes
quantity 1 - 10", 550 CFM, 115 V 50/60 Hz. AC fan
-
35
watt motor
-
Thermal
protected motor
-
Ball
bearing construction, plastic blades (3)
-
Diecast
aluminum body fan
-
Rotation
is clockwise (looking down at the rotor - as pictured on the
left)
-
Airflow
exhausts the rack (out the top as pictured on the left)
-
C
UL & UL recognized
-
5'
cord and molded on plug
-
Top
& bottom finger guards included
-
Pre-wired
and assembled as shown above
As
Pictured Above
|
|
1-99 |
|
|
Use
With
Rack Frame
Depth
|
|
EID-C2T1923F10BK1
EID-C2T1923F10CG1
|
|
Black
Gray/Beige
|
|
|
|
EID-C2T1931F10BK1
EID-C2T1931F10CG1
|
|
Black
Gray/Beige
|
|
|
|
EID-C2T1936F10BK1
EID-C2T1936F10CG1
|
|
Black
Gray/Beige
|
|
|
Same
As Above Plus 4 - 3.5" Diameter
Cable Access Holes & Covers
in Each Corner
|
|
1-99 |
|
|
Use
With
Rack Frame
Depth
|
|
EID-C2T1923F10CEBK1
EID-C2T1923F10CECG1
|
|
Black
Gray/Beige
|
|
|
|
EID-C2T1931F10CEBK1
EID-C2T1931F10CECG1
|
|
Black
Gray/Beige
|
|
|
|
EID-C2T1936F10CEBK1
EID-C2T1936F10CECG1
|
|
Black
Gray/Beige
|
|
|
Spare
10" Fans
(Included in
above)
Spare
10" Fan Guards
(Included in above)
(Complies with UL, CSA and VDE requirements. Meets UL
0.25" plug gauge test)
|
