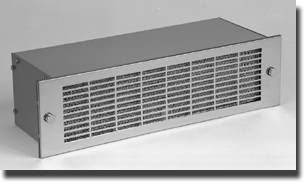

Intake Blowers



Blower



Features:

  • Standard 19" rack mount

  • Each unit contains a quadruplex centrifugal blower, powered by a single precision ball-bearing motor.

  • Air delivery from more than 50% of their 17" width

  • Internal neoprene isolation mounts reduce transmission of vibration to the rack

  • Air intake only, to pressurize the rack with filtered air

  • Heavy steel construction

  • Attractive 19" stainless steel grille included

  • 115 VAC, 50/60 Hz. motor is UL listed, CSA certified, ball bearing type, cooled by incoming air

  • Includes permanent filter

  • Comes with 6' STJW 3- wire cord

  • Control your rack temperature with our economical, compact thermostat



Part Number

1-9

Free Flow
Air Delivery
(CFM)

Running
Amps

RPM
Nominal

Ambient Temp
(F)

Color

Paint
Texture

Shipping
Weight

Panel Height

Inches

Units

KP350A



160

1.2

1500

-20 to +250

Gray

Smooth

10

3.50

2

KP529A



300

1.4

3000

-20 to +250

Gray

Smooth

18

5.25

3

KP729A



470

1.7

3250

-20 to +250

Gray

Smooth

23

7.00

4

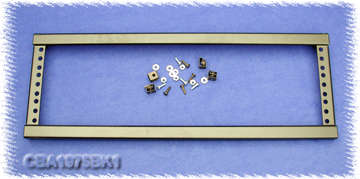

Contempra Rack - Blower Adaptor Kit



Click Here To Enlarge

  • Use only with "Contempra" rack series...

  • Mounts to the bottom of the rack panel opening, door mounts above it..

  • Kit mounts flush with both the rack frame and the door...

  • Allows use of 5.25" (3U) blowers...

  • Use the chart below to determine what rack door is required for your rack size panel opening with this kit...

  • Includes all rack & blower mounting hardware...

Adaptor Kit  Part Number

1-99

Color

Use With Flush Door
Part Number

For Rack Panel Height of:

Inches

Units

EID-CBA1975BK1
EID-CBA1975CG1



Black
Gray/Beige

CDF or C2DF1935...

42

24

Same as above



Same as above

CDF or C2DF1942...

49

28

Same as above



Same as above

CDF or C2DF1949...

56

32

Same as above



Same as above

CDF or C2DF1956...

63

36

Same as above



Same as above

CDF or C2DF1963...

70

40

EID-CBA1985BK1
EID-CBA1985CG1



Black
Gray/Beige

CDF or C2DF1970...

78.75

45



  •
