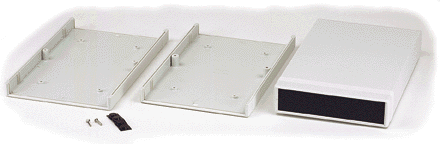

Plastic Instrument Enclosures (EID-1598 "S" Series) Polystyrene Version



1598BBSGY



Features and benefits:

  • Modern low profile designed instrument enclosure.

  • Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves, front and rear.

  • Available in economical matte textured gray polystyrene plastic top & bottom halves.

  • Easy access to interior via shell type construction.

  • Designed to meet IP54.

  • Integral horizontal P.C. card mounts on Eurocard centers.



With aluminum end panels



Part Number

Color

1-9

10-49

50-99

100-1K

Units

Length

Width

Enclosure Height (Clam Shell)

EID-1598BSGY

Grey









Inches

5.28

5.31

1.96

mm

134

135

50

EID-1598ASGY

Grey









Inches

6.18

3.70

1.42

mm

157

94

36

EID-1598ESGY

Grey









Inches

6.30

6.30

3.38

mm

160

160

86

EID-1598BBSGY

Grey









Inches

7.05

6.06

1.42

mm

179

154

36

EID-1598CSGY

Grey









Inches

7.09

6.10

2.04

mm

180

155

52

EID-1598DSGY

Grey









Inches

7.09

8.11

2.52

mm

180

206

64

EID-1598FSGY

Grey









Inches

9.84

6.30

1.58

mm

250

160

40

EID-1598GSGY

Grey









Inches

9.84

6.30

3.00

mm

250

160

76

EID-1598HSGY

Grey









Inches

11.02

7.87

1.58

mm

280

200

40

EID-1598JSGY

Grey









Inches

11.02

7.87

3.00

mm

280

200

76





1598 Polystyrene Version



With black ABS plastic end panels



Part Number

Color

1-9

10-49

50-99

100-1K

Units

Length

Width

Enclosure Height (Clam Shell)

EID-1598BSGYPBK

Grey









Inches

5.28

5.31

1.96

mm

134

135

50

EID-1598ASGYPBK

Grey









Inches

6.18

3.70

1.42

mm

157

94

36

EID-1598ESGYPBK

Grey









Inches

6.30

6.30

3.38

mm

160

160

86

EID-1598BBSGYPBK

Grey









Inches

7.05

6.06

1.42

mm

179

154

36

EID-1598CSGYPBK

Grey









Inches

7.09

6.10

2.04

mm

180

155

52

EID-1598DSGYPBK

Grey









Inches

7.09

8.11

2.52

mm

180

206

64

EID-1598FSGYPBK

Grey









Inches

9.84

6.30

1.58

mm

250

160

40

EID-1598GSGYPBK

Grey









Inches

9.84

6.30

3.00

mm

250

160

76

EID-1598HSGYPBK

Grey









Inches

11.02

7.87

1.58

mm

280

200

40

EID-1598JSGYPBK

Grey









Inches

11.02

7.87

3.00



Notes:

  • All Dimensions in inches & mm

  • Also available in EMI/RFI shielded version - download catalog pages for more data

  •
