Plastic
Instrument Enclosures (EID-1598
Series) Flame Retardant ABS Plastic Version

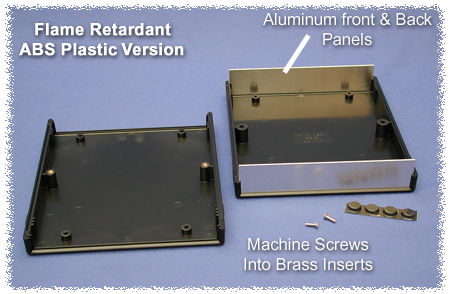

Features
and benefits:
- Desk top electronic
instrument enclosure, ideally suited for mounting printed
circuit boards.
- Molded from flame retardant
ABS plastic (material carries a UL flammability rating of
94V-0).
- Designed to meet IP54.
- Two sets of vertical 1.5 mm
(0.062”) P.C. board guides are molded into case halves
front and rear.
- Front and rear panels are
1.6 mm (0.064”) brushed aluminum with paper on one side.
- Cases halves are secured
with M3 x 0.5” x 10 mm (0.39”) Philips machine screws
threaded into tapped integral brass bushings. Perfect for
applications with repetitive assembly and disassembly are
required.
- Integral horizontal P.C.
card mounts on Eurocard centers.
- Stocked in matte textured
black and gray.
- EMI/RFI shielded cases are
stocked in black (see table).
| Part
Number |
Color
|
1-9
|
10-49
|
50-99
|
.100-1K
|
Units
|
Length
|
Width
|
Enclosure
Height (Clam Shell)
|

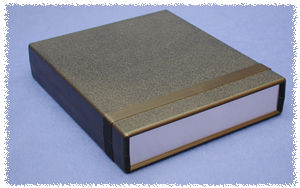

EID-1598BBK

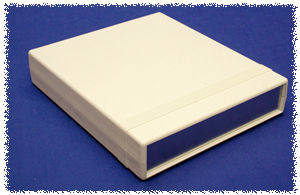

EID-1598BGY |
Black
Grey
|
|
|
|
|
Inches
|
5.28
|
5.31
|
1.96
|
|
mm
|
134
|
135
|
50
|
EID-1598ABK
EID-1598AGY |
Black
Grey |
|
|
|
|
Inches
|
6.18
|
3.70
|
1.42
|
|
mm
|
157
|
94
|
36
|
EID-1598EBK
EID-1598EGY |
Black
Grey
|
|
|
|
|
Inches
|
6.30
|
6.30
|
3.38
|
|
mm
|
160
|
160
|
86
|
EID-1598BBBK
EID-1598BBGY |
Black
Grey
|
|
|
|
|
Inches
|
7.05
|
6.06
|
1.42
|
|
mm
|
179
|
154
|
36
|
EID-1598CBK
EID-1598CGY |
Black
Grey
|
|
|
|
|
Inches
|
7.09
|
6.10
|
2.04
|
|
mm
|
180
|
155
|
52
|
EID-1598DBK
EID-1598DGY |
Black
Grey
|
|
|
|
|
Inches
|
7.09
|
8.11
|
2.52
|
|
mm
|
180
|
206
|
64
|
EID-1598FBK
EID-1598FGY |
Black
Grey
|
|
|
|
|
Inches
|
9.84
|
6.30
|
1.58
|
|
mm
|
250
|
160
|
40
|
EID-1598GBK
EID-1598GGY |
Black
Grey
|
|
|
|
|
Inches
|
9.84
|
6.30
|
3.00
|
|
mm
|
250
|
160
|
76
|
EID-1598HBK
EID-1598HGY |
Black
Grey
|
|
|
|
|
Inches
|
11.02
|
7.87
|
1.58
|
|
mm
|
280
|
200
|
40
|
EID-1598JBK
EID-1598JGY |
Black
Grey
|
|
|
|
|
Inches
|
11.02
|
7.87
|
3.00
|
|
mm
|
280
|
200
|
76
|
Notes:
|
