Sloping ABS Plastic Console Enclosures (EID-1595 Series) Flame Retardant ABS Plastic

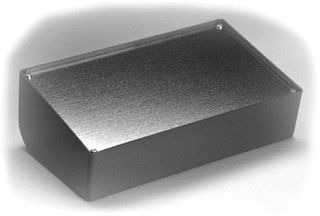

1595 Picture



Features and benefits:

  • Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.

  • Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).

  • Two piece construction. Integral card guides accept 1.5 mm (0.062”) P.C. cards. 0.20” diameter stand off bosses in the base for supporting various subassemblies.

  • Integral brass bushings with four M3 x 0.5” x 8 mm (0.31”) Philips pan head screws hold recessed panel into sloping front of case.

  • 1.01 mm (0.04”) aluminum panel with paper on one side.

  • Four self-adhesive feet included.

  • Stocked in black and gray

Part Number

Color

1-9

10-49

50-99

100-1K

Units

Width

Length

Enclosure Depth (Back of Console)

EID-1595CBK
EID-1595CGY

Black
Gray









Inches

6.35

3.78

2.28

mm

161

96

58

EID-1595EBK
EID-1595EGY

Black
Gray









Inches

8.47

5.12

2.95

mm

215

130

75



Notes:

  • All Dimensions in inches & mm

  • Includes recessed aluminum lid

  • Available in Flame Retardant ABS Plastic in Black or Gray.

  •
