Heavy Duty - Thick Wall Plastic Enclosures (EID-1594 "S" Series) Polystyrene Version



1594 Picture



Features and benefits:

  • Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.

  • Heavy duty with an average wall thickness of .13 (3.3 mm).

  • Molded from economical high impact polystyrene.

  • Designed to meet IP54.

  • Countersunk lid is secured with four #4 x 1 (25.4 mm) self tapping screws.

  • Stocked in gray with matte textured finish.

Part Number

Color

1-9

10-49

50-99

100-1K

Units

Length

Width

Enclosure Depth (Less Lid)

EID-1594ASGY

Gray









Inches

2.2

2.2

1.1

mm

56

56

28

EID-1594BSGY

Gray









Inches

3.2

2.2

1.1

mm

81

56

28

EID-1594CSGY

Gray









Inches

4.1

2.6

1.3

mm

105

66

33

EID-1594DSGY

Gray









Inches

5.2

2.6

1.7

mm

131

66

43

EID-1594ESGY

Gray









Inches

6.6

4.2

2.1

mm

167

107

53



Notes:

  • All Dimensions in inches & mm

  • Average wall thickness is 0.13" (3.2 mm)

  • Add 0.47" (12 mm) to enclosure depth for lid

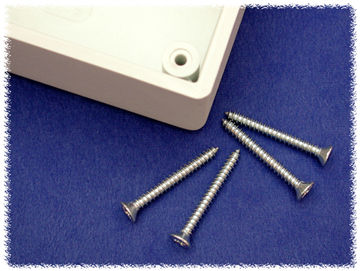

Polystyrene versions use self tapping
screws. Perfect where economy is important
and where repetitive assembly and
disassembly of lid is not vital.

Polystyrene - Self Tapping Screws
