Heavy Duty - Thick Wall Plastic Enclosures (EID-1594 Series) Flame Retardant ABS Plastic Version



1594 Picture



Features and benefits:

  • Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.

  • Heavy duty, thick wall design with an average wall thickness of .13 (3.3 mm).

  • Molded from flame retardant ABS plastic (carries a UL flammability rating of 94V-0).

  • Designed to meet IP54, watertight version meets IP65.

  • Countersunk lid is secured with four M3 x 0.5 x 0.71 (18 mm) Philips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.

  • Stocked in black and gray with matte textured finish.

Part Number

Color

1-9

10-49

50-99

100-1K

Units

Length

Width

Enclosure Depth (Less Lid)

EID-1594ABK
EID-1594AGY

Black
Grey









Inches

2.2

2.2

1.1

mm

56

56

28

EID-1594BBK
EID-1594BGY

Black
Grey









Inches

3.2

2.2

1.1

mm

81

56

28

EID-1594CBK
EID-1594CGY

Black
Grey









Inches

4.1

2.6

1.3

mm

105

66

33

EID-1594DBK
EID-1594DGY

Black
Grey









Inches

5.2

2.6

1.7

mm

131

66

43

EID-1594EBK
EID-1594EGY

Black
Grey









Inches

6.6

4.2

2.1

mm

167

107

53



Notes:

  • All Dimensions in inches & mm

  • Average wall thickness is 0.13" (3.2 mm)

  • Add 0.47" (12 mm) to enclosure depth for lid

  • Also available in EMI/RFI shielded and watertight versions

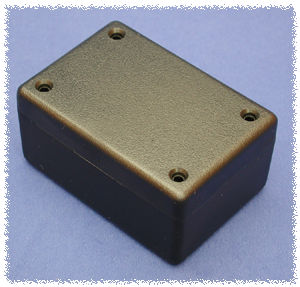

1594BBK

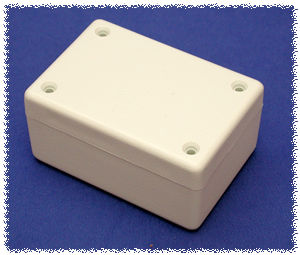

1594BGY

Black

Grey

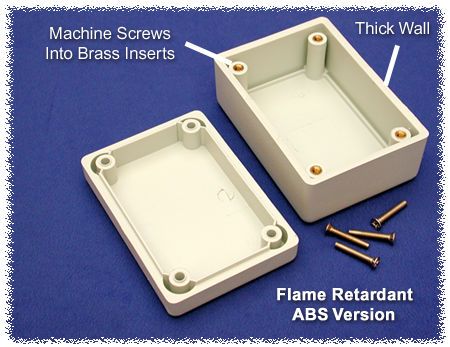

 1594 ABS Features
