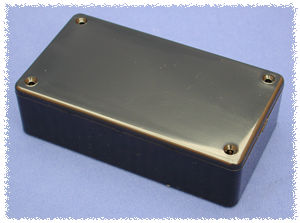

General Purpose ABS Plastic Enclosures (EID-1591 "S" Series) Polystyrene Version


1591BSBK
Economical Version (Internal)



Features and benefits:

  • Electronic instrument enclosures, ideally suited for mounting printed circuit boards.

  • Integral card guides accept 1.5 mm (0.062) P.C. cards.

  • Lap joint construction provides protection against access of dust and splashing water.

  • Designed to meet IP54

  • Molded from economical black polystyrene.

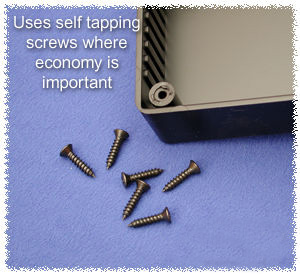

  • Lid is secured with self-tapping #4 x 0.5 Philips type screws.

Part Number

Color

1-9

10-49

50-99

100-1K

Units

Length

Width

Enclosure Depth (Less Lid)

EID-1591MSBK

Black









Inches

3.3

2.2

0.8

mm

85

56

21

EID-1591LSBK

Black









Inches

3.3

2.2

1.4

mm

85

56

35

EID-1591ASBK

Black









Inches

3.9

2.0

0.8

mm

100

50

21

EID-1591SSBK

Black









Inches

4.3

3.2

1.6

mm

110

82

40

EID-1591BSBK

Black









Inches

4.4

2.4

1.1

mm

112

62

27

EID-1591CSBK

Black









Inches

4.7

2.6

1.4

mm

120

65

36

EID-1591TSBK

Black









Inches

4.7

3.2

2.2

mm

120

80

55

EID-1591USBK

Black









Inches

4.7

4.7

2.2

mm

120

120

55

EID-1591VSBK

Black









Inches

4.7

4.7

3.5

mm

120

120

90

EID-1591GSBK

Black









Inches

4.8

3.7

1.2

mm

121

94

30

EID-1591DSBK

Black









Inches

5.9

3.2

1.8

mm

150

80

46

EID-1591HSBK

Black









Inches

6.5

2.8

1.0

mm

165

71

25

EID-1591ESBK

Black









Inches

7.5

4.3

2.2

mm

191

110

57



Notes:

  • All Dimensions in inches & mm

  • Add 0.16" (4 mm) to enclosure depth for lid
