Plastic Enclosures with flanged lid (EID-1591 "FL" Series) Flame Retardant ABS Plastic Version



1591BFLBK

1591BFLBK Open



Features and benefits:

  • Ideally suited for mounting printed circuit boards.

  • Integral card guides accept 1.5 mm (0.062”) P.C. cards.

  • Lid also contains four molded in PC board standoffs.

  • Lap joint construction provides protection against access of dust and splashing water.

  • Designed to meet IP54.

  • Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).

  • Lid is secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.

  • Flanged lid is perfect for wall or shelf mounting and enclosure security.

Part Number

Color

1-9

10-49

50-99

100-1K

Units

Length

Width

Enclosure Depth (Less Lid)

EID-1591MFLBK
EID-1591MFLGY

Black
Grey









Inches

3.3

2.2

0.8

mm

85

56

21

EID-1591LFLBK
EID-1591LFLGY

Black
Grey









Inches

3.3

2.2

1.4

mm

85

56

35

EID-1591AFLBK
EID-1591AFLGY

Black
Grey

Inches

3.9

2.0

0.8

mm

100

50

21

EID-1591SFLBK
EID-1591SFLGY

Black
Grey









Inches

4.3

3.2

1.6

mm

110

82

40

EID-1591BFLBK
EID-1591BFLGY

Black
Grey









Inches

4.4

2.4

1.1

mm

112

62

27

EID-1591CFLBK
EID-1591CFLGY

Black
Grey

Inches

4.7

2.6

1.4

mm

120

65

36

EID-1591TFLBK
EID-1591TFLGY

Black
Grey









Inches

4.7

3.2

2.2

mm

120

80

55

EID-1591UFLBK
EID-1591UFLGY

Black
Grey









Inches

4.7

4.7

2.2

mm

120

120

55

EID-1591VFLBK
EID-1591VFLGY

Black
Grey









Inches

4.7

4.7

3.5

mm

120

120

90

EID-1591GFLBK
EID-1591GFLGY

Black
Grey









Inches

4.8

3.7

1.2

mm

121

94

30

EID-1591DFLBK
EID-1591DFLGY

Black
Grey









Inches

5.9

3.2

1.8

mm

150

80

46

EID-1591HFLBK
EID-1591HFLGY

Black
Grey

Inches

6.5

2.8

1.0

mm

165

71

25

EID-1591EFLBK
EID-1591EFLGY

Black
Grey

Inches

7.5

4.3

2.2

mm

191

110

57



Notes:

  • Dimensions are for enclosure (length does not including flanges)

  • Lid includes molded in, P.C. board standoffs

  • All Dimensions in inches & mm

  • Add 0.16" (4 mm) to enclosure depth for lid

Accessories:

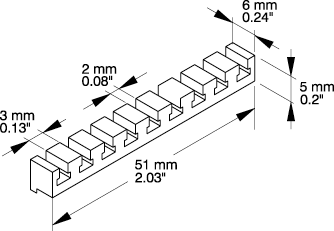

P.C. Board Card Adaptors:

To allow horizontal mounting of P.C. boards in the vertical card guides of the EID-1591 series of enclosures.

Part Number EID-1591Z6 - Package of 6
Part Number EID-1591Z50 - Package of 50
Part Number EID-1591Z100 - Package of 100






Screws:

  • Accessory screws for mounting P.C. boards into standoffs (#4 x 1/4" pan head) P/N 1593ATS50 (qty. 50), P/N 1593ATS100 (qty. 100).

  • Lid replacement machine screws, nickel plated, M3 - 0.5 x 10mm EID-1591MS100 - Package of 100

Belt or Pocket Clip:



Click Here To Enlarge

  • Molded from tough nylon.

  • Includes 2 nylon screws (insulated to avoid internal interference).

  • Mounting template included.



Black - Part Number 1599CLIP
Grey (shown) Part Number 1599CLIPGY



  •
