General Purpose Plastic Enclosures (EID-1591 Series) Flame Retardant ABS Plastic Version

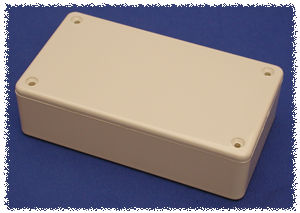

1591BBG

1591BBK

Beige

Black

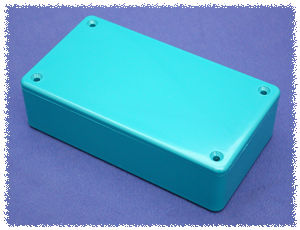

1591BBU

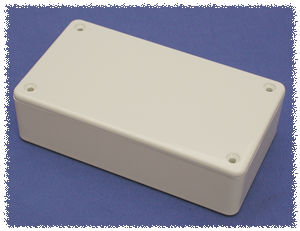

1591BGY

Blue

Grey



Features and benefits:

  • Ideally suited for mounting printed circuit boards.

  • Integral card guides accept 1.5 mm (0.062) P.C. cards.

  • Lap joint construction provides protection against access of dust and splashing water.

  • Designed to meet IP54.

  • Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).

  • Lid is secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.

Part Number

Color

1-9

10-49

50-99

99-1K

Units

Length

Width

Enclosure Depth (Less Lid)

EID-1591MBG
EID-1591MBK
EID-1591MBU
EID-1591MGY

Beige
Black
Blue
Grey









Inches

3.3

2.2

0.8

mm

85

56

21

EID-1591LBG
EID-1591LBK
EID-1591LBU
EID-1591LGY

Beige
Black
Blue
Grey









Inches

3.3

2.2

1.4

mm

85

56

35

EID-1591ABG
EID-1591ABK
EID-1591ABU
EID-1591AGY

Beige
Black
Blue
Grey









Inches

3.9

2.0

0.8

mm

100

50

21

EID-1591SBG
EID-1591SBK
EID-1591SBU
EID-1591SGY

Beige
Black
Blue
Grey









Inches

4.3

3.2

1.6

mm

110

82

40

EID-1591BBG
EID-1591BBK
EID-1591BBU
EID-1591BGY

Beige
Black
Blue
Grey









Inches

4.4

2.4

1.1

mm

112

62

27

EID-1591CBG
EID-1591CBK
EID-1591CBU
EID-1591CGY

Beige
Black
Blue
Grey









Inches

4.7

2.6

1.4

mm

120

65

36

EID-1591TBG
EID-1591TBK
EID-1591TBU
EID-1591TGY

Beige
Black
Blue
Grey









Inches

4.7

3.2

2.2

mm

120

80

55

EID-1591UBG
EID-1591UBK
EID-1591UBU
EID-1591UGY

Beige
Black
Blue
Grey









Inches

4.7

4.7

2.2

mm

120

120

55

EID-1591VBG
EID-1591VBK
EID-1591VBU
EID-1591VGY

Beige
Black
Blue
Grey









Inches

4.7

4.7

3.5

mm

120

120

90

EID-1591GBG
EID-1591GBK
EID-1591GBU
EID-1591GGY

Beige
Black
Blue
Grey









Inches

4.8

3.7

1.2

mm

121

94

30

EID-1591DBG
EID-1591DBK
EID-1591DBU
EID-1591DGY

Beige
Black
Blue
Grey









Inches

5.9

3.2

1.8

mm

150

80

46

EID-1591HBG
EID-1591HBK
EID-1591HBU
EID-1591HGY

Beige
Black
Blue
Grey









Inches

6.5

2.8

1.0

mm

165

71

25

EID-1591EBG
EID-1591EBK
EID-1591EBU
EID-1591EGY

Beige
Black
Blue
Grey









Inches

7.5

4.3

2.2

mm

191

110

57



Notes:

  • All Dimensions in inches & mm

  • Add 0.16" (4 mm) to enclosure depth for lid

  • Flame Retardant ABS Plastic in Beige, Black, Blue or Grey

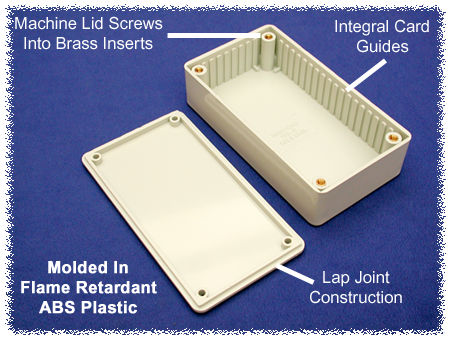

Flame Retardant ABS Features



Accessories:



P.C. Board Card Adaptors:



Part Number EID-1591Z6 - Package of 6
Part Number EID-1591Z50 - Package of 50
Part Number EID-1591Z100 - Package of 100






Replacement Screws:



Part Number EID-1591MS100 - package of 100. M3 - 0.5 X 10mm



Machine Lid Screw



Belt or Pocket Clip:



Click Here To Enlarge



  • Molded from tough nylon.

  • Includes 2 nylon screws (insulated to avoid internal interference).

  • Mounting template included.

Black - Part Number 1599CLIP
Grey (shown) - Part Number 1599CLIPGY

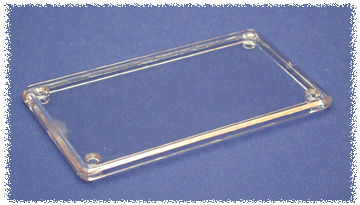

Clear Lids:



Clear Polycarbonate (flame retardant material):

Part Number EID-1591LC - use with EID-1591L series
Part Number EID-1591AC - use with EID-1591A series
Part Number EID-1591BC - use with EID-1591B series
Part Number EID-1591CC - use with EID-1591C series
Part Number EID-1591DC - use with EID-1591D series
Part Number EID-1591EC - use with EID-1591E series
Part Number EID-1591GC - use with EID-1591G series
Part Number EID-1591HC - use with EID-1591H series
Part Number EID-1591SC - use with EID-1591S series
Part Number EID-1591TC - use with EID-1591T series
Part Number EID-1591UC - use with EID-1591U series
Part Number EID-1591VC
- use with EID-1591V series



Clear Polycarbonate Lid
