General Purpose ABS Miniature Hand held Plastic Enclosures (1551 Series)



Click Here To Enlarge     Click Here To Enlarge    Click Here To Enlarge

Assembled View
(Top)

Assembled View
(Bottom)

Open View



Key Features:

  • Ideally suited for mounting small printed circuit boards or used as potting boxes.

  • Molded in a choice of black or grey - general purpose ABS plastic.

  • Satin texture finish.

  • Complete with lid and two self tapping screws.

  • This series is also available with flanged lids.

  • Screws are color matched to enclosure (nickel plated screws with grey enclosures and black plated with black enclosures).

  • 2 P.C. board standoffs molded into interior.

  • Lap joint construction provides protection against access of dust and splashing water.

  • Designed to meet IP54.

  • Three sizes (see tables below) are available with a key-ring kit.

  • Models with key ring kit are predrilled in the narrow side.

Part Number

Color

Units

Length

Width

Enclosure
Depth
(With Lid)

EID-1551NBK
EID-1551NGY

Black
Grey

Inches

1.38

1.38

0.59

mm

35

35

15

EID-1551MBK
EID-1551MGY

Black
Grey

Inches

1.38

1.38

0.79

mm

35

35

20

EID-1551QBK
EID-1551QGY

Black
Grey

Inches

1.58

1.58

0.59

mm

40

40

15

EID-1551PBK
EID-1551PGY

Black
Grey

Inches

1.58

1.58

0.79

mm

40

40

20

EID-1551FBK
EID-1551FGY

Black
Grey

Inches

1.97

1.38

0.59

mm

50

35

15

EID-1551GBK
EID-1551GGY

Black
Grey

Inches

1.97

1.38

0.79

mm

50

35

20

EID-1551SBK
EID-1551SGY

Black
Grey

Inches

1.97

1.97

0.59

mm

50

50

15

EID-1551RBK
EID-1551RGY

Black
Grey

Inches

1.97

1.97

0.79

mm

50

50

20

EID-1551JBK
EID-1551JGY

Black
Grey

Inches

2.36

1.38

0.59

mm

60

35

15

EID-1551HBK
EID-1551HGY

Black
Grey

Inches

2.36

1.38

0.79

mm

60

35

20

EID-1551LBK
EID-1551LGY

Black
Grey

Inches

3.15

1.58

0.59

mm

80

40

15

EID-1551KBK
EID-1551KGY

Black
Grey

Inches

3.15

1.58

0.79

mm

80

40

20

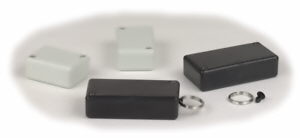

Three Sizes Available With A Key Ring Kit:



1551 Group picture



















      Click Here To Enlarge    Click Here To Enlarge    Click Here To Enlarge



 Part Number

Color

Units

Length

Width

Enclosure Depth (Less Lid)

EID-1551GBK
EID-1551GGY

Black
Grey

Inches

1.97

1.38

0.67

mm

50

35

17

EID-1551HBK
EID-1551HGY

Black
Grey

Inches

2.36

1.38

0.67

mm

60

35

17

EID-1551KBK
EID-1551KGY

Black
Grey

Inches

3.15

1.57

0.67

mm

80

40

17



Notes:

  • All Dimensions in inches & mm

  • Add 0.12" (3 mm) to enclosure depth for lid

  • Extra Self tapping lid screws are #4 x 1/2"  Qty 100 - Part number EID-1591TS100 and EID-1591TS100BK - black)

  • To secure P.C. board use #2 x 3/16" (Qty 100 - Part number EID-1551ATS100) - not included with enclosure.

  •
