Rack Mount / Table Top Instrument (EID-RMCS & EID-RMCV Series)



RMCV with Optional Chassis Panel

Features and benefits:

  • Shipped knocked down to avoid shipping damage

  • Easy assembly & disassembly

  • Uses all PEM nut construction, perfect for applications where repetitive assembly and disassembly are required.

  • Strong construction using .125" thick side panels and .062" thick top and bottom panels

  • Light weight design - all aluminum

  • Can be used with or without rack mounting brackets (included)

  • Front & rear panel are interchangeable (one is smooth off white and the other, smooth black powder paint)

  • Enclosure is finished in rugged, textured, black powder paint

  • Includes top, bottom, side panels, feet, rack mount brackets and all hardware

  • Link below for more information on our chrome pull handles (not included with unit)

  • Easy access to inside, only 4 screws need to be removed from any of the 6 panels

  • Aluminum chassis panel is optional

19" Rack Mount (Solid Top & Bottom)

Part Number

1-9

10-49

50-99

100-1K

Panel Height

Width
(Inches)

Depth
(Inches)

Accepts Pull Handle

Inside Clearance With Chassis Installed
(Inches)

Inches

Units

EID-RMCS19018BK1









1.75

1

17

8

No

0.81

EID-RMCS190113BK1









1.75

1

17

13

No

0.81

EID-RMCS19038BK1









3.5

2

17

8

1427P

2.56

EID-RMCS190313BK1









3.5

2

17

13

1427P

2.56

EID-RMCS190513BK1









5.25

3

17

13

1427N

4.31

EID-RMCS190713BK1









7

4

17

13

1427M

6.06

EID-RMCS190813BK1









8.75

5

17

13

1427M

7.81

EID-RMCS191013BK1









10.5

6

17

13

1427L

9.56

EID-RMCS191015BK1









10.5

6

17

15

1427L

9.56



19" Rack Mount (Ventilated Top & Bottom)



Part Number

1-9

10-49

50-99

100-1K

Panel Height

Width
(Inches)

Depth
(Inches)

Accepts Pull Handle

Inside Clearance With Chassis Installed
(Inches)

Inches

Units

EID-RMCV19018BK1









1.75

1

17

8

No

0.81

EID-RMCV190113BK1









1.75

1

17

13

No

0.81

EID-RMCV19038BK1









3.5

2

17

8

1427P

2.56

EID-RMCV190313BK1









3.5

2

17

13

1427P

2.56

EID-RMCV190513BK1









5.25

3

17

13

1427N

4.31

EID-RMCV190713BK1









7

4

17

13

1427M

6.06

EID-RMCV190813BK1









8.75

5

17

13

1427M

7.81

EID-RMCV191013BK1









10.5

6

17

13

1427L

9.56

EID-RMCV191015BK1









10.5

6

17

15

1427L

9.56



Half Width - Rack Mount (Solid Top & Bottom)

Part Number

1-9

10-49

50-99

100-1K

Panel Height

Width
(Inches)

Depth
(Inches)

Accepts Pull Handle

Inside Clearance With Chassis Installed
(Inches)

Inches

Units

EID-RMCS9018BK1









1.75

1

8.5

8

No

0.81

EID-RMCS9038BK1









3.5

2

8.5

8

1427P

2.56

EID-RMCS9058BK1









5.25

3

8.5

8

1427N

4.31



Half Width - Rack Mount (Ventilated Top & Bottom)

Part Number

1-9

10-49

50-99

100-1K

Panel Height

Width
(Inches)

Depth
(Inches)

Accepts Pull Handle

Inside Clearance With Chassis Installed
(Inches)

Inches

Units

EID-RMCV9018BK1









1.75

1

8.5

8

No

0.81

EID-RMCV9038BK1









3.5

2

8.5

8

1427P

2.56

EID-RMCV9058BK1









5.25

3

8.5

8

1427N

4.31



Chassis Panel



Part Number

1-9

10-49

50-99

100-1K

Use With Enclosure

Width (In.)

Depth (In.)

EID-RMP908









8.5

8

EID-RMP1908









17

8

EID-RMP1913









17

13

EID-RMP1915









17

15



Notes:

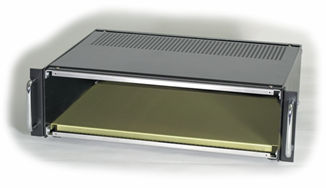

Photo above (vented version) shown assembled with optional chassis & chrome handles installed. Front panel removed to show interior



  •
