Hardware



Plastic Feet:



Part Number EID-M797-24

  • 1.1” (27mm) length

  • 0.64” (16mm) height

  • 0.55” (EID-14mm) depth

  • black polyamic fixed rear legs

  • hardware included

  • sold in pairs

Part Number EID-M3784-7001

  • 2.6” (67mm) length (in closed position)

  • 1.8 (46mm) height (in open position)

  • black polyamide spring locked folding legs

  • hardware included

  • sold in pairs

Part Number EID-1427X

  • 2.5” (63mm) length (in closed position)

  • 1.35” (34mm) height (in open position)

  • white AEID-BS plastic folding legs

  • sold in pairs



Cable Wraps:



Part Number EID-M795

  • 4.8” (122mm) overall length

  • grey plastic cord wrap

  • simple installation: secured by two clips each (included)

  • sold in pairs

Part Number EID-M795-2

  • 5” (126mm) overall length

  • zinc plated cord wrap

  • mounting hardware not included

  • sold in pairs

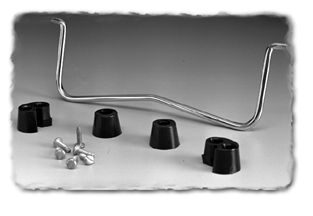

Bails:



  • Chrome plated steel bail

  • four black plastic feet

  • includes mounting hardware

Part Number

Mounting Centers

inches

mm

EID-1427D5

5.5

139.7

EID-1427D7

7.0

177.8

EID-1427D10

10.0

254.0


Miscellaneous Hardware:



Part Number

Qty.

per pkg.

Hardware Accessories


EID-BH1AAWKIT

1

Battery holder kit for 1 AA cell for EID-1599 B & E series



Kit includes:

  • Battery holder for one AA battery
  • Wire leads
  • Double sided tape backing

Note: AA Battery NOT included

Click Here To Enlarge



EID-BH2AAWKIT

1

Battery holder kit for 2 AA cell for EID-1599 B & E series



Kit includes:

  • Battery holder for two AA batteries
  • Wire leads
  • Foam with adhesive tape on one side
  • Battery divider for 1599 series

Note: AA Battery NOT included

Click Here To Enlarge

EID-BH1AAAWKIT

1

Battery holder kit for 1 AAA cell for EID-1599 B & E series



Kit includes:

  • Battery holder for one AAA battery
  • Wire leads
  • Double sided tape backing

Note: AAA Battery NOT included

Click Here To Enlarge

EID-BH2AAAWKIT

1

Battery holder kit for 2 AAA cell for EID-1599 B & E series



Kit includes:

  • Battery holder for two AAA batteries
  • Wire leads
  • Double sided tape backing

Note: AAA Battery NOT included

Click Here To Enlarge

EID-BH3AAAWKIT

1

Battery holder kit for 3 AAA cell for EID-1599E series



Kit includes:

  • Battery holder for three AAA batteries
  • Wire leads
  • Double sided tape backing (two strips)



Note: AAA Battery NOT included

Click Here To Enlarge

EID-BH4AAAWKIT

1

Battery holder kit for 4 AAA cell for EID-1599E series



Kit includes:

  • Battery holder for four AAA batteries
  • Wire leads
  • Foam with adhesive tape on one side
  • Battery divider for 1599 series

Note: AAA Battery NOT included

Click Here To Enlarge

EID-BS61KIT

1

Battery holder kit for 1 - 9V cell for EID-1599 B & E series



Kit includes:

  • Battery holder for one 9V battery
  • Wire leads
  • Foam with adhesive tape on one side
  • Battery dividers for 1599 series

Note: 9 Volt Battery NOT included

Click Here To Enlarge

EID-1427KR

1

Key ring kit for EID-1551 series



EID-1448A20

20

Angles, clips and screws for EID-1448 rails



EID-1448R6

1

Mounting rails for EID-1401 & EID-1458 series



EID-1448R8

1

Mounting rails for EID-1401 & EID-1458 series



EID-1448R10

1

Mounting rails for EID-1401 & EID-1458 series



EID-1448R12

1

Mounting rails for EID-1401 & EID-1458 series



EID-1448REID-14

1

Mounting rails for EID-1401 & EID-1458 series



EID-1590LG

1

Lid gasket for EID-1590L



EID-1590MG

1

Lid gasket for EID-1590M



EID-1590NG

1

Lid gasket for EID-1590N



EID-1590PG

1

Lid gasket for EID-1590P



EID-1590RG

1

Lid gasket for EID-1590R



EID-1591AC

1

Clear plastic lid for EID-1591A series



EID-1591BC

1

Clear plastic lid for EID-1591B series



EID-1591CC

1

Clear plastic lid for EID-1591C series



EID-1591DC

1

Clear plastic lid for EID-1591D series



EID-1591EC

1

Clear plastic lid for EID-1591E series



EID-1591GC

1

Clear plastic lid for EID-1591G series



EID-1591HC

1

Clear plastic lid for EID-1591H series



EID-1591LC

1

Clear plastic lid for EID-1591L series



EID-1591SC

1

Clear plastic lid for EID-1591S series



EID-1591TC

1

Clear plastic lid for EID-1591T series



EID-1591UC

1

Clear plastic lid for EID-1591U series



EID-1591VC

1

Clear plastic lid for EID-1591V series



EID-1591Z6

6

P.C. card adaptors for EID-1590 (L-R) & EID-1591 series



EID-1591Z50

50

P.C. card adaptors for EID-1590 (L-R) & EID-1591 series



EID-1591Z100

100

P.C. card adaptors for EID-1590 (L-R) & EID-1591 series



EID-1592ETG

1

Gasket kit for EID-1592 "T" case



EID-1592ETM

1

Magnetic 3" pad for rear of EID-1592 "T" case



EID-1592ETRF

6

Rubber feet for EID-1592 "T" case



EID-1592ETV

1

Velcro mounting pad for EID-1592 "T" case



EID-1593PIR10

10

Infrared panels for EID-1593 series



EID-1594AZ25

25 sets

P.C. card guides for EID-1594A series



EID-1594AD5

5 sets

P.C. card guides for EID-1594A series



EID-1594BZ25

25 sets

P.C. card guides for EID-1594B series



EID-1594BD5

5 sets

P.C. card guides for EID-1594B series



EID-1594CZ25

25 sets

P.C. card guides for EID-1594C series



EID-1594CD5

5 sets

P.C. card guides for EID-1594C series



EID-1594DZ25

25 sets

P.C. card guides for EID-1594D series



EID-1594DD5

5 sets

P.C. card guides for EID-1594D series



EID-1594EZ25

25 sets

P.C. card guides for EID-1594E series



EID-1594ED5

5 sets

P.C. card guides for EID-1594E series



EID-1594SKA

1

Gasket kit for EID-1594A series



EID-1594SKB

1

Gasket kit for EID-1594B series



EID-1594SKC

1

Gasket kit for EID-1594C series



EID-1594SKD

1

Gasket kit for EID-1594D series



EID-1594SKE

1

Gasket kit for EID-1594E series




Part Number

Qty per pkg.

Replacement & Accessory Screws

Screw Size

EID-1421J6

6

Self tapping for most metal case series

6-32 Phillips, nickel plated

EID-1551ATS100

100

Self tapping type for EID-1551 series

#2 x 3/16" nickel plated

EID-1590MS100

100

Machine type for EID-1590 (except L-R) series

6-32 x ½" nickel plated

EID-1590MS50BK

50

Black machine type for EID-1590 series

6-32 x ½"

EID-1590MS50BU

50

Blue machine type for EID-1590 series

6-32 x ½"

EID-1590MS50GY

50

Grey machine type for EID-1590 series

6-32 x ½"

EID-1591MS100

100

Machine type for EID-1591 & EID-1598 series

EID-M3 - 0.5 x 10mm

EID-1591TS100

100

Self tapping type for EID-1591 styrene and EID-1551 series

#4 x 0.5" nickel plated

EID-1591TS100BK

100

Black self tapping type for EID-1591 styrene and EID-1551 series

#4 x 0.5"

EID-1593MS100

100

Self tapping, oval head for EID-1593 series

#4 x 0.625" (EID-15.9mm)

EID-1594MS100

100

Machine type for EID-1594,EID-1599B, and EID-1592 series

EID-M3 - 0.5 x 18mm

EID-1594TS100

100

Self tapping for EID-1594 & EID-1599ES styrene series

#4 x 25.4mm (1")

EID-1594WMS100

100

Machine type for EID-1594 watertight series & EID-1599E

EID-M3 - 0.5 x 25mm

EID-1595MS100

100

Machine type for EID-1595 series

EID-M3 - 0.5 x 8mm

EID-1598ATS100

100

Screws for stand-off bosses in EID-1595, EID-1598 & EID-1599 series

#6 x 1/4" (6.4mm)

EID-1598TS100

100

Self tapping for EID-1598 styrene series

#4 x 5/8"

EID-1599BTS100

100

Self tapping for EID-1599BS styrene series

#4 x ¾"

EID-1599HMS100

100

Machine type for EID-1599H series

EID-M3 - 0.5 x 28mm

EID-1599HTS100

100

Self tapping for EID-1599HS styrene series

#4 x 1 5/16"



  •
