Corrosion Resistant Enclosure Eclipse Series: Eclipse Series Stainless Steel (SS) Single Door Enclosures - NEMA 4X





                                  Single Door with quarter turns



                             Eclipse Series Stainless Steel (S.S.) Single Door Enclosures - NEMA 4X

Application:

  • Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wall-mount applications.

  • Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.

  • A wide range of sizes and practical accessories make this product line a complete package.



Standards:

  • UL 508 Type 3R, 4, 4X, and 12

  • CSA Type 3R, 4, 4X, and 12

  • Complies with

    • NEMA Type 3R, 4, 4X, 12 and 13

    • IEC 60529, IP66

Construction:

  • Formed 14 or 16 gauge 304 or 316 stainless steel.

  • Continuously welded seams ground smooth.

  • Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.

  • Formed lip on enclosure to exclude flowing liquids and contaminants.

  • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.

  • Doors may be easily removed for modifications and are interchangeable.

  • Seamless poured-in place gasket.

  • Collar studs provided for mounting inner panel.

  • Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.

  • Bonding stud provided on door and grounding stud installed in enclosure.

  • Stainless steel 3 point latching handle (where applicable).

  • Stainless steel hinge pins and quarter turns.

  • Door alignment guide provided on 36" wide enclosures

Finish:

  • Cover and enclosure are natural stainless steel with a smooth brushed finish.

Accessories:

  • Air conditioners

  • Blowers

  • Breather kits

  • DIN Rails

  • DIN Rail Mounting Kit

  • Door stop kit

  • Filter fans

  • Heaters

  • Handles

  • Inner Panel

  • Quarter Turn Inserts and Keys

  • Literature Pocket

  • Mounting Foot Kit

  • Padlock Adapter (EPA)

  • Swing Frame

  • Swing Panel

  • Replacement Hinge Pins

  • Replacement Quarter Turn Assemblies

  • Thermostats

  • Touch Up Paint

  • UL/CSA Approved Hardware Kit

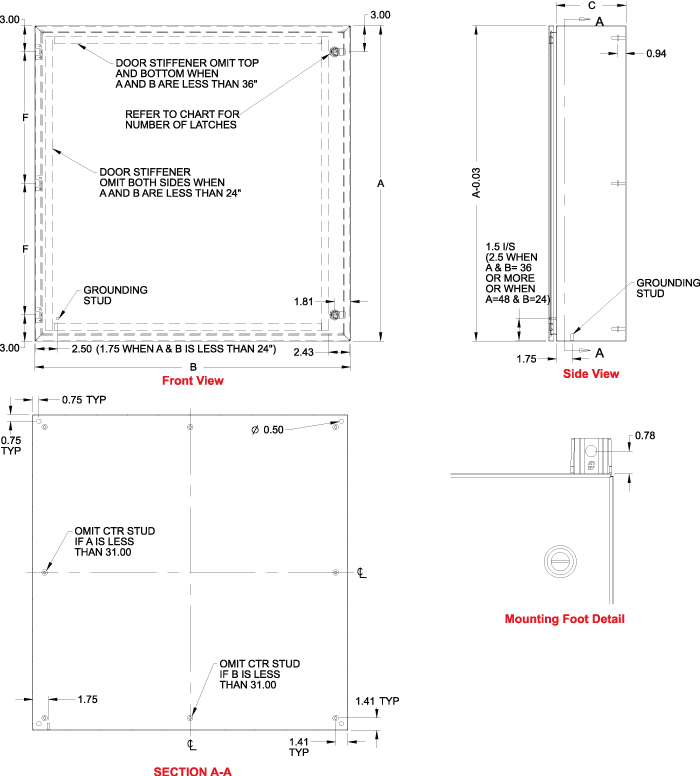

304 S.S.
Part Number

Overall
Dimensions

Door/

Body Gauge

Latches
Qty

Type

Optional Panel
Part No.

Panel Size

Hinges



Ship Wt.
Lbs.

A

B

C

D

E

F

EID-EN4SD12126SS

12

12

6

16

1

Qtr Turn

EID-EP1212

10.2

10.2

2

6

12

EID-EN4SD16126SS

16

12

6

16

1

Qtr Turn

EID-EP1612

14.2

10.2

2

10

16

EID-EN4SD16166SS

16

16

6

16

1

Qtr Turn

EID-EP1616

14.2

14.2

2

10

19

EID-EN4SD16206SS

16

20

6

16

1

Qtr Turn

EID-EP1620

14.2

18.2

2

10

22

EID-EN4SD20166SS

20

16

6

16

1

Qtr Turn

EID-EP2016

18.2

14.2

2

14

22

EID-EN4SD20206SS

20

20

6

16

1

Qtr Turn

EID-EP2020

18.2

18.2

2

14

26

EID-EN4SD24206SS

24

20

6

16

1

Qtr Turn

EID-EP2420

22.2

18.2

2

18

30

EID-EN4SD16128SS

16

12

8

16

1

Qtr Turn

EID-EP1612

14.2

10.2

2

10

16

EID-EN4SD16168SS

16

16

8

16

1

Qtr Turn

EID-EP1616

14.2

14.2

2

10

21

EID-EN4SD16208SS

16

20

8

16

1

Qtr Turn

EID-EP1620

14.2

18.2

2

10

25

EID-EN4SD20168SS

20

16

8

16

1

Qtr Turn

EID-EP2016

18.2

14.2

2

14

25

EID-EN4SD20208SS

20

20

8

16

1

Qtr Turn

EID-EP2020

18.2

18.2

2

14

28

EID-EN4SD20248SS

20

24

8

16

1

Qtr Turn

EID-EP2024

18.2

22.2

2

14

32

EID-EN4SD24168SS

24

16

8

16

1

Qtr Turn

EID-EP2416

22.2

14.2

2

18

26

EID-EN4SD24208SS

24

20

8

16

1

Qtr Turn

EID-EP2420

22.2

18.2

2

18

32

EID-EN4SD24248SS

24

24

8

14

2

Qtr Turn

EID-EP2424

22.2

22.2

2

18

40

EID-EN4SD24308SS

24

30

8

14

2

Qtr Turn

EID-EP2430

22.2

28.2

2

18

48

EID-EN4SD30208SS

30

20

8

14

2

Qtr Turn

EID-EP3020

28.2

18.2

3

12

42

EID-EN4SD30248SS

30

24

8

14

2

Qtr Turn

EID-EP3024

28.2

22.2

3

12

46

EID-EN4SD30308SS

30

30

8

14

2

Qtr Turn

EID-EP3030

28.2

28.2

3

12

67

EID-EN4SD36248SS

36

24

8

14

2

Qtr Turn

EID-EP3624

34.2

22.2

3

15

55

EID-EN4SD36308SS

36

30

8

14

2

Qtr Turn

EID-EP3630

34.2

28.2

3

15

77

EID-EN4SD42368SSR

42

36

8

14

5

Qtr Turn

EID-EP4236

40.2

34.2

4

12

106

EID-EN4SD48368SSR

48

36

8

14

5

Qtr Turn

EID-EP4836

46.2

34.2

4

14

124

EID-EN4SD161210SS

16

12

10

16

1

Qtr Turn

EID-EP1612

14.2

10.2

2

10

18

EID-EN4SD161610SS

16

16

10

16

1

Qtr Turn

EID-EP1616

14.2

14.2

2

10

23

EID-EN4SD162010SS

16

20

10

16

1

Qtr Turn

EID-EP1620

14.2

18.2

2

10

28

EID-EN4SD201610SS

20

16

10

16

1

Qtr Turn

EID-EP2016

18.2

14.2

2

14

28

EID-EN4SD202010SS

20

20

10

16

1

Qtr Turn

EID-EP2020

18.2

18.2

2

14

31

EID-EN4SD202410SS

20

24

10

16

1

Qtr Turn

EID-EP2024

18.2

22.2

2

14

38

EID-EN4SD241610SS

24

16

10

16

1

Qtr Turn

EID-EP2416

22.2

14.2

2

18

30

EID-EN4SD242010SS

24

20

10

16

1

Qtr Turn

EID-EP2420

22.2

18.2

2

18

38

EID-EN4SD242410SS

24

24

10

14

2

Qtr Turn

EID-EP2424

22.2

22.2

2

18

45

EID-EN4SD243010SS

24

30

10

14

2

Qtr Turn

EID-EP2430

22.2

28.2

2

18

53

EID-EN4SD302010SS

30

20

10

14

2

Qtr Turn

EID-EP3020

28.2

18.2

3

12

47

EID-EN4SD302410SS

30

24

10

14

2

Qtr Turn

EID-EP3024

28.2

22.2

3

12

53

EID-EN4SD303010SS

30

30

10

14

2

Qtr Turn

EID-EP3030

28.2

28.2

3

12

75

EID-EN4SD362410SS

36

24

10

14

2

Qtr Turn

EID-EP3624

34.2

22.2

3

15

62

EID-EN4SD363010SS

36

30

10

14

2

Qtr Turn

EID-EP3630

34.2

28.2

3

15

83

EID-EN4SD423010SSR

42

30

10

14

5

Qtr Turn

EID-EP4230

40.2

28.2

4

12

110

EID-EN4SD482410SS

48

24

10

14

1

3-point

EID-EP4824

46.2

26.2

4

14

95

EID-EN4SD202012SS

20

20

12

16

1

Qtr Turn

EID-EP2020

18.2

18.2

2

14

34

EID-EN4SD242412SS

24

24

12

14

2

Qtr Turn

EID-EP2424

22.2

22.2

2

18

47

EID-EN4SD302412SS

30

24

12

14

2

Qtr Turn

EID-EP3024

28.2

22.2

3

12

57

EID-EN4SD362412SS

36

24

12

14

2

Qtr Turn

EID-EP3624

34.2

22.2

3

15

62

EID-EN4SD363012SS

36

30

12

14

2

Qtr Turn

EID-EP3630

34.2

28.2

3

15

95

EID-EN4SD363612SS

36

36

12

14

2

Qtr Turn

EID-EP3636

34.2

34.2

3

15

104

EID-EN4SD423612SSR

42

36

12

14

5

Qtr Turn

EID-EP4236

40.2

34.2

4

12

121

EID-EN4SD483612SSR

48

36

12

14

5

Qtr Turn

EID-EP4836

46.2

34.2

4

14

148

EID-EN4SD603612SSR

60

36

12

14

5

Qtr Turn

EID-EP6036

58.2

34.2

4

18

162

EID-EN4SD302416SS

30

24

16

14

2

Qtr Turn

EID-EP3024

28.2

22.2

3

12

60

EID-EN4SD363016SS

36

30

16

14

2

Qtr Turn

EID-EP3630

34.2

28.2

3

15

89

EID-EN4SD483616SSR

48

36

16

14

6

Qtr Turn

EID-EP4836

46.2

34.2

4

14

135



316 S.S.
Part Number

Overall
Dimensions

Door/

Body Gauge

Latches
Qty

Type

Optional Panel
Part No.

Panel Size

Hinges



Ship Wt.
Lbs.

A

B

C

D

E

F

EID-EN4SD12126S16

12

12

6

16

1

Qtr Turn

EID-EP1212

10.2

10.2

2

6

12

EID-EN4SD16126S16

16

12

6

16

1

Qtr Turn

EID-EP1612

14.2

10.2

2

10

16

EID-EN4SD16166S16

16

16

6

16

1

Qtr Turn

EID-EP1616

14.2

14.2

2

10

19

EID-EN4SD20166S16

20

16

6

16

1

Qtr Turn

EID-EP2016

18.2

14.2

2

14

22

EID-EN4SD20206S16

24

20

6

16

1

Qtr Turn

EID-EP2420

22.2

18.2

2

18

30

EID-EN4SD16128S16

16

12

8

16

1

Qtr Turn

EID-EP1612

14.2

10.2

2

10

16

EID-EN4SD16168S16

16

16

8

16

1

Qtr Turn

EID-EP1616

14.2

14.2

2

10

21

EID-EN4SD16208S16

16

20

8

16

1

Qtr Turn

EID-EP1620

14.2

18.2

2

10

25

EID-EN4SD20168S16

20

16

8

16

1

Qtr Turn

EID-EP2016

18.2

14.2

2

14

25

EID-EN4SD20208S16

20

20

8

16

1

Qtr Turn

EID-EP2020

18.2

18.2

2

14

28

EID-EN4SD24168S16

24

16

8

16

1

Qtr Turn

EID-EP2416

22.2

14.2

2

18

26

EID-EN4SD24208S16

24

20

8

16

1

Qtr Turn

EID-EP2420

22.2

18.2

2

18

32

EID-EN4SD24248S16

24

24

8

14

2

Qtr Turn

EID-EP2424

22.2

22.2

2

18

40

EID-EN4SD30248S16

30

24

8

14

2

Qtr Turn

EID-EP3024

28.2

22.2

3

12

46

EID-EN4SD30308S16

30

30

8

14

2

Qtr Turn

EID-EP3030

28.2

28.2

3

12

67

EID-EN4SD36248S16

36

24

8

14

2

Qtr Turn

EID-EP3624

34.2

22.2

3

15

55

EID-EN4SD36308S16

36

30

8

14

2

Qtr Turn

EID-EP3630

34.2

28.2

3

15

77

EID-EN4SD161210S16

16

12

10

16

1

Qtr Turn

EID-EP1612

14.2

10.2

2

10

18

EID-EN4SD161610S16

16

16

10

16

1

Qtr Turn

EID-EP1616

14.2

14.2

2

10

23

EID-EN4SD162010S16

16

20

10

16

1

Qtr Turn

EID-EP1620

14.2

18.2

2

10

28

EID-EN4SD201610S16

20

16

10

16

1

Qtr Turn

EID-EP2016

18.2

14.2

2

14

28

EID-EN4SD202010S16

20

20

10

16

1

Qtr Turn

EID-EP2020

18.2

18.2

2

14

31

EID-EN4SD202410S16

20

24

10

16

1

Qtr Turn

EID-EP2024

18.2

22.2

2

14

38

EID-EN4SD241610S16

24

16

10

16

1

Qtr Turn

EID-EP2416

22.2

14.2

2

18

30

EID-EN4SD242010S16

24

20

10

16

1

Qtr Turn

EID-EP2420

22.2

18.2

2

18

38

EID-EN4SD242410S16

24

24

10

14

2

Qtr Turn

EID-EP2424

22.2

22.2

2

18

45

EID-EN4SD243010S16

24

30

10

14

2

Qtr Turn

EID-EP2430

22.2

28.2

2

18

53

EID-EN4SD302010S16

30

20

10

14

2

Qtr Turn

EID-EP3020

28.2

18.2

3

12

47

EID-EN4SD302410S16

30

24

10

14

2

Qtr Turn

EID-EP3024

28.2

22.2

3

12

53

EID-EN4SD303010S16

30

30

10

14

2

Qtr Turn

EID-EP3030

28.2

28.2

3

12

75

EID-EN4SD362410S16

36

24

10

14

2

Qtr Turn

EID-EP3624

34.2

22.2

3

15

62

EID-EN4SD363010S16

36

30

10

14

2

Qtr Turn

EID-EP3630

34.2

28.2

3

15

83

EID-EN4SD482410S16

48

24

10

14

1

3-point

EID-EP4824

46.2

26.2

4

14

95

EID-EN4SD202012S16

20

20

12

16

1

Qtr Turn

EID-EP2020

18.2

18.2

2

14

34

EID-EN4SD242412S16

24

24

12

14

2

Qtr Turn

EID-EP2424

22.2

22.2

2

18

47

EID-EN4SD302412S16

30

24

12

14

2

Qtr Turn

EID-EP3024

28.2

22.2

3

12

57

EID-EN4SD362412S16

36

24

12

14

2

Qtr Turn

EID-EP3624

34.2

22.2

3

15

62

EID-EN4SD363012S16

36

30

12

14

2

Qtr Turn

EID-EP3630

34.2

28.2

3

15

95

EID-EN4SD363612S16

36

36

12

14

2

Qtr Turn

EID-EP3636

34.2

34.2

3

15

104

EID-EN4SD483616S16R

48

36

16

14

6

Qtr Turn

EID-EP4836

46.2

34.2

4

14

135



  •
